Bichamp Cutting Technology
| Place of Origin: | China |
|---|---|
| Brand Name: | Bichamp |
| Certification: | IAF, SGS, UKAS |
| Model Number: | FICUT® |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wrapped film packaging+Non fumigation pallets 1100*1100， 1100*550， 800*800 |
| Delivery Time: | Root 1-2 weeks, Coil 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Over 20 million Meter Per year |
| Series: | FICUT® | Blade Material: | M42 High Speed Steel |
|---|---|---|---|
| Application: | Solid Materials And Profiles | Advantage: | General Purpose Metal Cutting Blade |
| OEM/ODM: | YES | Process Type: | Laser Welded |
| Band Width: | 67mm | Blade Thickness: | 1.60mm |
| Highlight: | OEM Industrial Bandsaw Blades,ODM Industrial Bandsaw Blades |
||

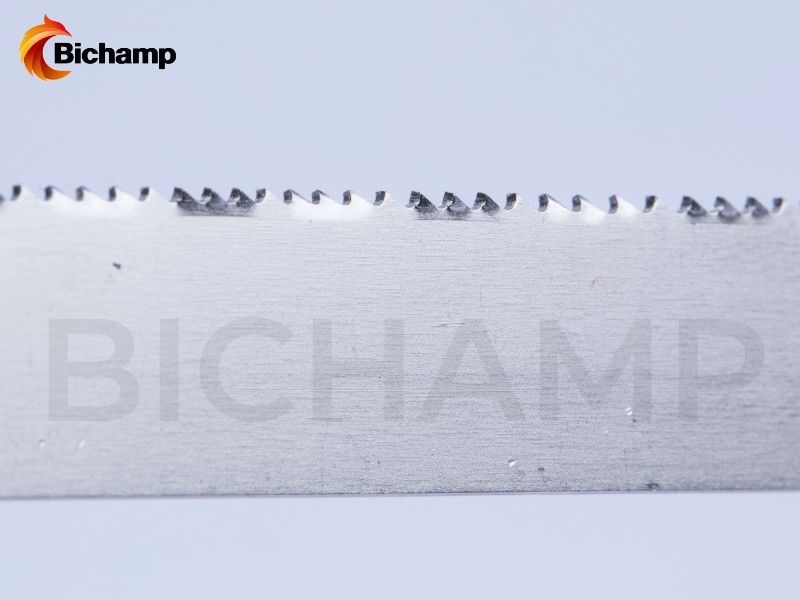

FICUT® M42 HSS 67x1.60mm General Purpose Bi Metal Band Saw Blades For Cutting Metal
FICUT® M42 General Purpose Bi-Metal Bandsaw Blade
Available in constant and variable pitch
Benifits
• Bi-metal construction
• M42 high speed steel cutting edge
• Constant or variable tooth pitch with both positive rake angle and standard tooth set
• Fewer blade changes
• High precision in straightness and planeness of the strip
Applications
• Carbon Steels • Stainless Steels
• Die Steels • Structural Steels
• Alloy Steels • Tool Steels
• Aluminium • Bronze/Brass
Variable pitch
| Tooth Form | Positive rake angle | Standard tooth | |||||||||
| Width x Thickness | 1/1.5 | 1.4/2 | 2/3 | 3/4 | 4/6 | 5/8 | 6/10 | 8/12 | 10/14 | 14/18 | |
| MM | Inches | α=7° | α=10° | α=10° | α=10° | α=10° | α=7° | α=7° | α=7° | α=7° | α=7° |
| 13x0.65 | 1/2x0.025 | VS-G | VS-G | VS-G | VS-W | ||||||
| 13x0.90 | 1/2x0.035 | VS-G£ | VS-G♦ | VS-G♦ | |||||||
| 19x0.90 | 3/4x0.035 | VP-G | VS-G | VS-G | VS-G | VS-G | VS-W♦ | ||||
| 27x0.90 | 1x0.035 | VP-G | VP-G | VP-G | VS-G | VS-G | VS-G | VS-G | |||
| 34x1.10 | 1-1/4x0.042 | VP-G | VP-G | VP-G | VS-G | VS-G | VS-G | ||||
| 41x1.30 | 1-1/2x0.050 | VP-G♦ | VP-G | VP-G | VP-G | VP-G | VS-G♦ | ||||
| 54x1.60 | 2x0.063 | VP-G♦ | VP-G | VP-G | VP-G♦ | ||||||
| 67x1.60 | 2-5/8x0.063 | VP-G♦ | VP-G | VP-G♦ | VP-G♦ | ||||||
♦—MOQ REQUIRED
Constant pitch
| Tooth Form | Positive rake angle | Standard tooth | ||||
| Width x Thickness | 3 | 4 | 6 | 14 | 18 | |
| MM | Inches | α=10° | α=0° | α=0° | α=0° | α=0° |
| 13x0.65 | 1/2x0.025 | CS-S | CS-S | CS-S♦ | ||
| 13x0.90 | 1/2x0.035 | CP-S | CS-S♦ | |||
| 19x0.90 | 3/4x0.035 | CP-S | CS-S | |||
| 27x0.90 | 1x0.035 | CP-S♦ | CS-S | CS-S | ||
