Bichamp Cutting Technology
| Place of Origin: | China |
|---|---|
| Brand Name: | Bichamp |
| Certification: | IAF, SGS, UKAS |
| Model Number: | CB-MP® |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wrapped film packaging+Non fumigation pallets 1100*1100， 1100*550， 800*800 |
| Delivery Time: | Root 1-2 weeks, Coil 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Over 20 million Meter Per year |
| Series: | CB-MP® | Blade Material: | Carbide |
|---|---|---|---|
| Application: | Wide Variety Of Materials | Advantage: | General Purpose Carbide Blade |
| Grade: | Industrial | Process Type: | Laser Welded |
| Teeth Set: | Triple-Chip Set | Band Width: | 34mm |
| Blade Thickness: | 1.10mm | ||
| High Light: | 34mm Band Saw Blade For Cutting Titanium,Band Saw Blade For Cutting Titanium |
||

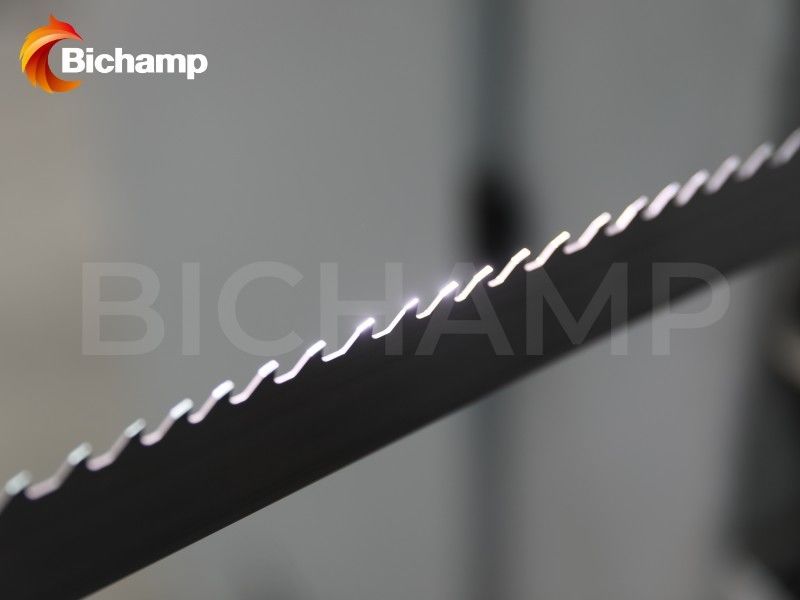

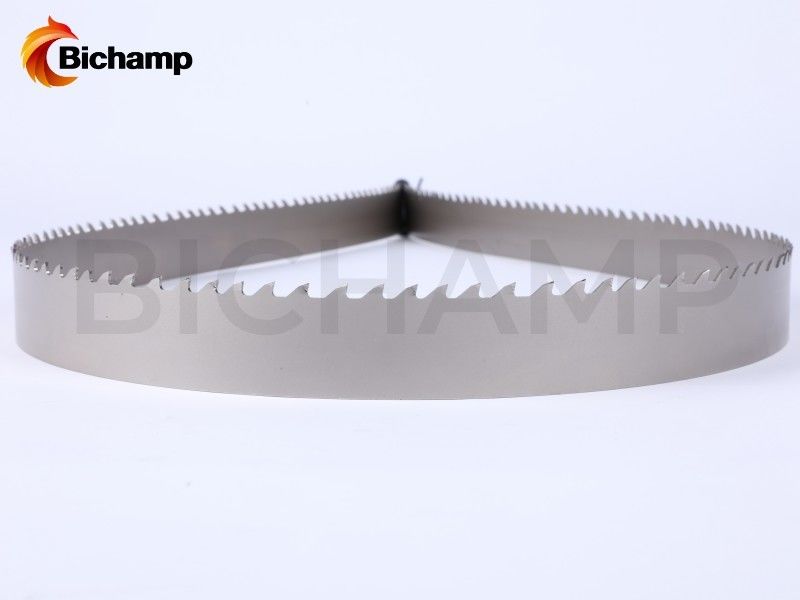

CB-MP® Triple-Chip Set 34x1.10mm General Purpose Carbide Tipped Band Saw Blade for Titanium Alloys Cutting
CB-MP® Triple-Chip Set Carbide Bandsaw Blade
Benifits
• Carbide blade for high efficiency cutting of difficult and abrasive materials
• Triple-chip set tooth design eliminates vibration and noise especially on unstable machines
• Selected carbide tip for wear resistance and durability to increase productivity dramatically
Features
• Positive rake angle tooth for faster cutting rates and increased productivity
• High beam strength due to gullet design
• Special selected ultra-fin grain carbide tips for sharp teeth
Applications
• Alloy Steel • Bearing Steel
• Die Steel • Stainless Steel
• Abrasive Tool Steel • Titanium Alloys
• Aerospace Alloys • Abrasive Graphite
• Non ferrous (Aluminum)
Avaliable Size
| Width x Thickness | TPI | ||||||
| MM | Inches | 0.75/1.0 | 1.0/1.25 | 1.4/2.0 | 2/3 | 3 | 3/4 |
| 19x0.90 | 3/4x0.035 | ■ | |||||
| 27x0.90 | 1x0.035 | ■ | ■ | ■ | |||
| 34x1.10 | 1-1/4x0.042 | ■ | ■ | ||||
| 41x1.30 | 1-1/2x0.050 | ■ | ■ | ■ | |||
| 54x1.60 | 2x0.063 | ■ | ■ | ■ | |||
| 67x1.60 | 2-5/8x0.063 | ■ | ■ | ■ | |||
| 80x1.60 | 3x0.063 | ■ | ■ | ||||
