Bichamp Cutting Technology
| Place of Origin: | China |
|---|---|
| Brand Name: | Bichamp |
| Certification: | IAF, SGS, UKAS |
| Model Number: | PROCUT® |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wrapped film packaging+Non fumigation pallets 1100*1100， 1100*550， 800*800 |
| Delivery Time: | Root 1-2 weeks, Coil 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Over 20 million Meter Per year |
| Series: | PROCUT® | Blade Material: | High Speed Steel |
|---|---|---|---|
| Application: | Structurals, Profiles | Advantage: | Impact Resistant |
| Grade: | Industrial | Process Type: | Laser Welded |
| Band Width: | 34mm | Blade Thickness: | 1.10mm |
| High Light: | Profiles Metal Cutting Bandsaw Blades,Metal Cutting Bandsaw Blades 34mm |
||

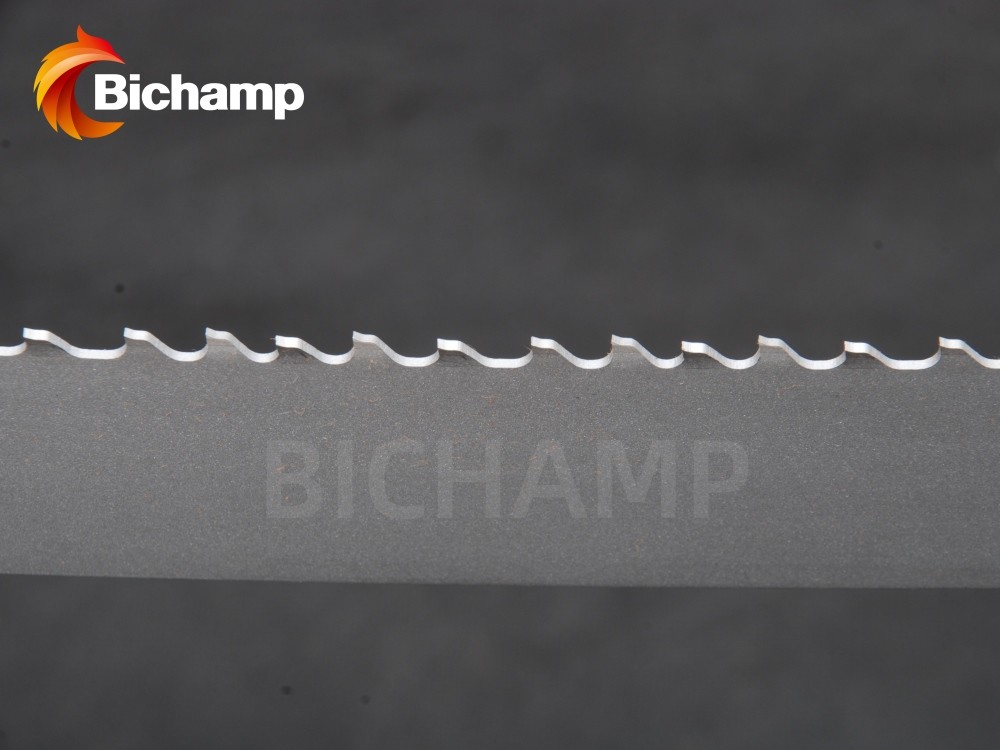

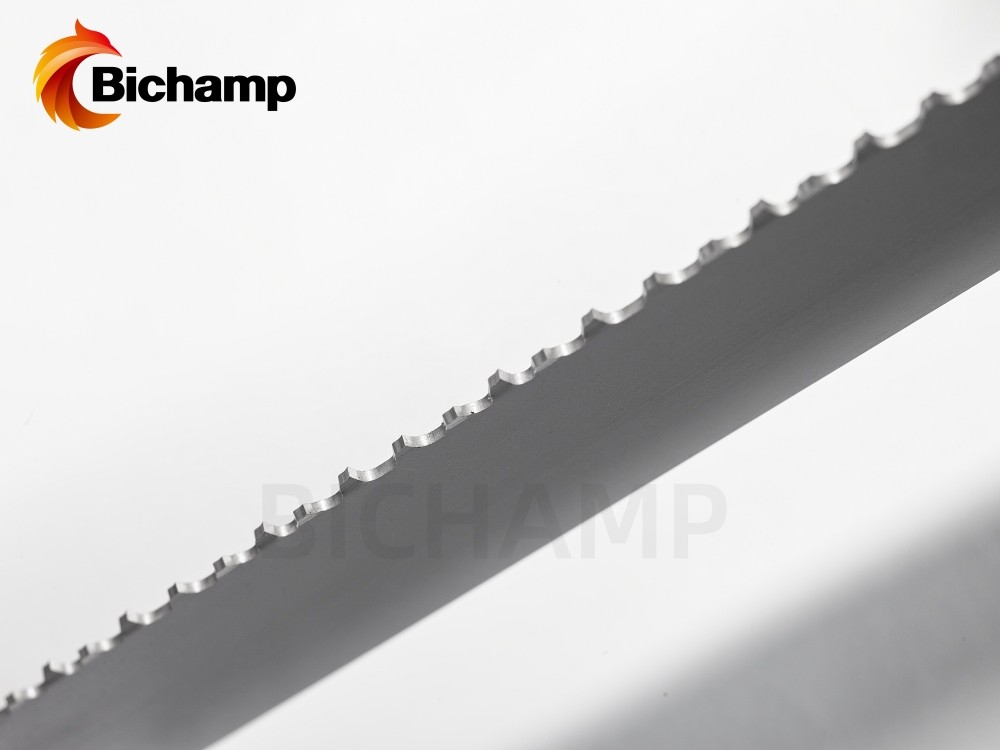

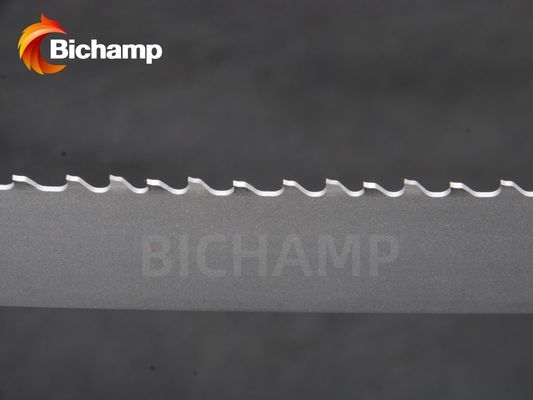

PROCUT® HSS 34mm High Performance Sawing Bandsaw Blade for Profiles Cutting
PROCUT® Optimized For Structural Cutting
Benifits
• For cutting of structural steel, tubes and profiles
• Long blade life and extreme durability
• Patented tooth profile resists tooth strippage, even at higher feed rates
• Less susceptible to vibration due to the special teeth form
• With a Protective tooth geometry, this high-performance blade is developed for cutting profiles and tubes
Features
• Resistant to broken teeth due to extremely stable tooth geometry
• Profile tooth with extremely stable tooth geometry
Applications
• Mild Steel • Structural Steel
• Alloy Steel • Stainless Steel
| TOOTH FORM | TPI | |||
| Width x Thickness | 2/3 | 3/4 | 4/6 | |
| MM | Inches | α=7° | α=7° | α=7° |
| 27x0.90 | 1x0.035 | VP-G | VP-G | |
| 34x1.10 | 1-1/4x0.042 | VP-V | VP-G | |
| 41x1.30 | 1-1/2x0.050 | VP-G♦ | VP-V | VP-G |
| 54x1.60 | 2x0.063 | VP-G♦ | VP-V | VP-G♦ |
| 67x1.60 | 2-5/8x0.063 | VP-G♦ | VP-V♦ | |
PROCUT-WS
• Wide Set(WS) to creat wider kerf to prevent blade from pinching
• For large cross sections steel beams, structural material with residual stress
| Width x Thickness | 2/3 | 3/4 | |
| MM | Inches | α=7° | α=7° |
| 27x0.90 | 1x0.035 | ||
| 34x1.10 | 1-1/4x0.042 | ||
| 41x1.30 | 1-1/2x0.050 | VP-V♦ | VP-V♦ |
| 54x1.60 | 2x0.063 | VP-V♦ | VP-V♦ |
| 67x1.60 | 2-5/8x0.063 | VP-V♦ | VP-V♦ |
