Bichamp Cutting Technology
| Place of Origin: | China |
|---|---|
| Brand Name: | Bichamp |
| Certification: | IAF, SGS, UKAS |
| Model Number: | PROCUT® |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wrapped film packaging+Non fumigation pallets 1100*1100， 1100*550， 800*800 |
| Delivery Time: | Root 1-2 weeks, Coil 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Over 20 million Meter Per year |
| Series: | PROCUT® | Blade Material: | High Speed Steel |
|---|---|---|---|
| Application: | Structurals, Profiles | Advantage: | Impact Resistant |
| Grade: | Industrial | Process Type: | Laser Welded |
| Band Width: | 27mm | Blade Thickness: | 0.90mm |
| Highlight: | HSS 1 Inch Band Saw Blades,1 Inch Band Saw Blades UKAS |
||

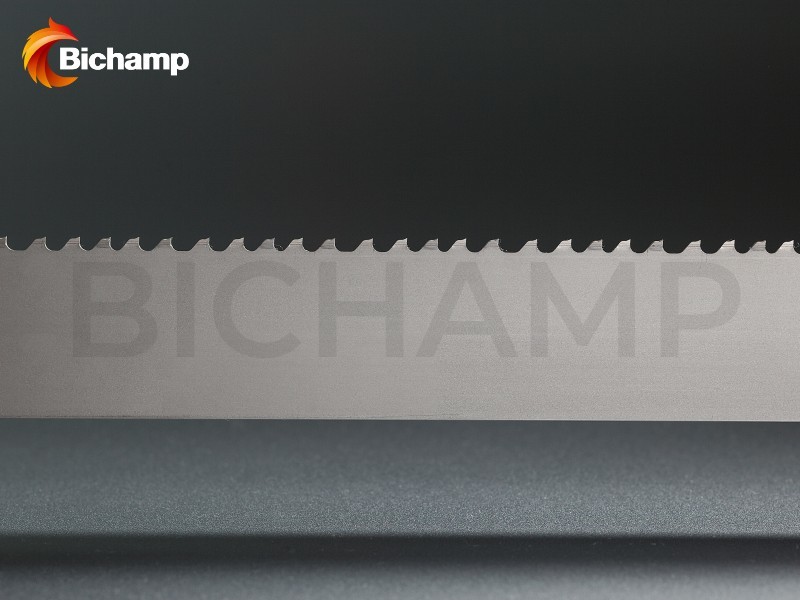

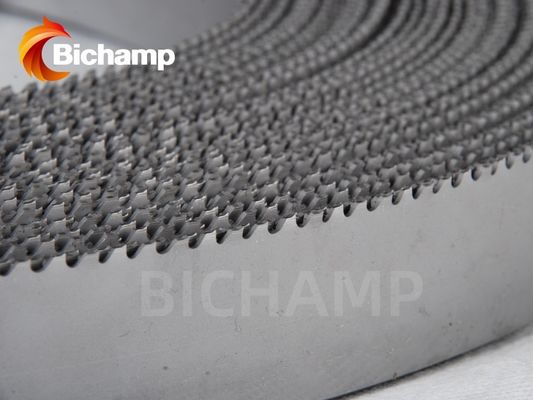

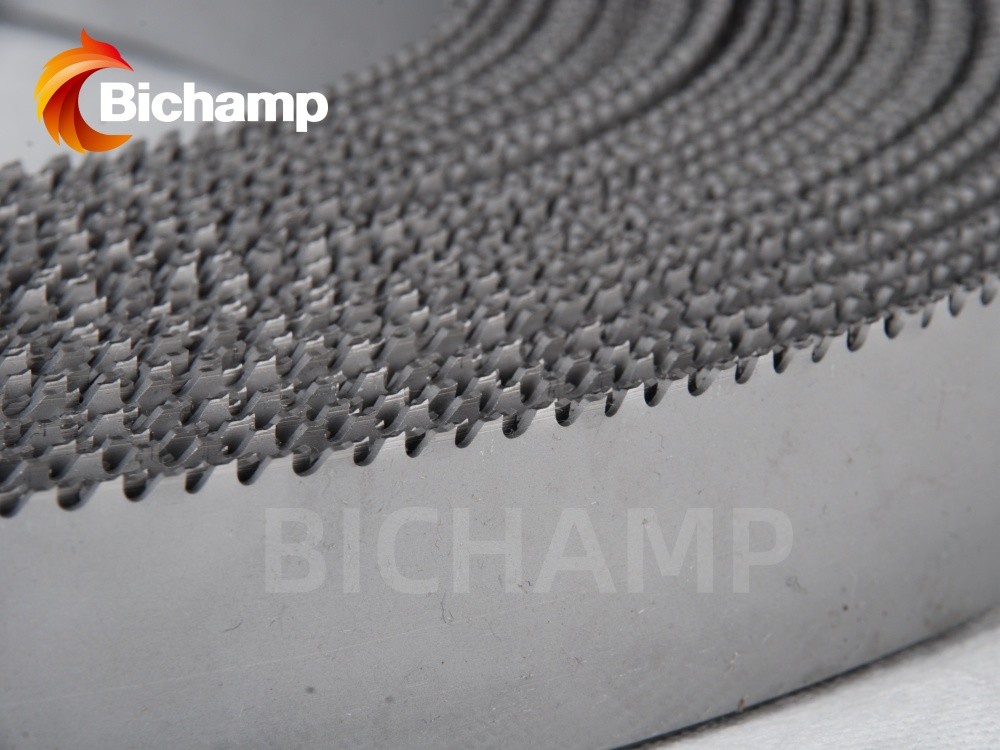

PROCUT® HSS 27mm Metal Cutting Band Saw Blade to Cut Structurals, Tubing
PROCUT® Optimized For Structural Cutting
Benifits
• Designed exclusively for Structural Steel
• Resists heat, abrasion, and shock for faster cutting
• Allow heavier penetration under fast cutting rate
Features
• Powder metallurgy high speed edge
• For cutting of all shapes of steel
• Impact resist design for strong teeth
• Unique tooth profile that prevents over-feeding and the resulting stripped teeth
• Prevents tooth chipping when cutting structural steel subjected to severe vibration and noise
Applications
• Mild Steel • Structural Steel
• Alloy Steel • Stainless Steel
| TOOTH FORM | TPI | |||
| Width x Thickness | 2/3 | 3/4 | 4/6 | |
| MM | Inches | α=7° | α=7° | α=7° |
| 27x0.90 | 1x0.035 | VP-G | VP-G | |
| 34x1.10 | 1-1/4x0.042 | VP-V | VP-G | |
| 41x1.30 | 1-1/2x0.050 | VP-G♦ | VP-V | VP-G |
| 54x1.60 | 2x0.063 | VP-G♦ | VP-V | VP-G♦ |
| 67x1.60 | 2-5/8x0.063 | VP-G♦ | VP-V♦ | |
PROCUT-WS
• Wide Set(WS) to creat wider kerf to prevent blade from pinching
• For large cross sections steel beams, structural material with residual stress
| Width x Thickness | 2/3 | 3/4 | |
| MM | Inches | α=7° | α=7° |
| 27x0.90 | 1x0.035 | ||
| 34x1.10 | 1-1/4x0.042 | ||
| 41x1.30 | 1-1/2x0.050 | VP-V♦ | VP-V♦ |
| 54x1.60 | 2x0.063 | VP-V♦ | VP-V♦ |
| 67x1.60 | 2-5/8x0.063 | VP-V♦ | VP-V♦ |
