Bichamp Cutting Technology
| Place of Origin: | China |
|---|---|
| Brand Name: | Bichamp |
| Certification: | IAF, SGS, UKAS |
| Model Number: | TANCUT® |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wrapped film packaging+Non fumigation pallets 1100*1100， 1100*550， 800*800 |
| Delivery Time: | Root 1-2 weeks, Coil 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Over 20 million Meter Per year |
| Series: | TANCUT® | Blade Material: | M51 High Speed Steel |
|---|---|---|---|
| Application: | Difficult To Cut Materials | Advantage: | High Performance Cutting |
| OEM/ODM: | YES | Process Type: | Laser Welded |
| Band Width: | 67mm | Blade Thickness: | 1.60mm |
| High Light: | UKAS Bi Metal Bandsaw Blades,Bi Metal Bandsaw Blades Laser Welded,Bandsaw Blade Steel Laser Welded |
||

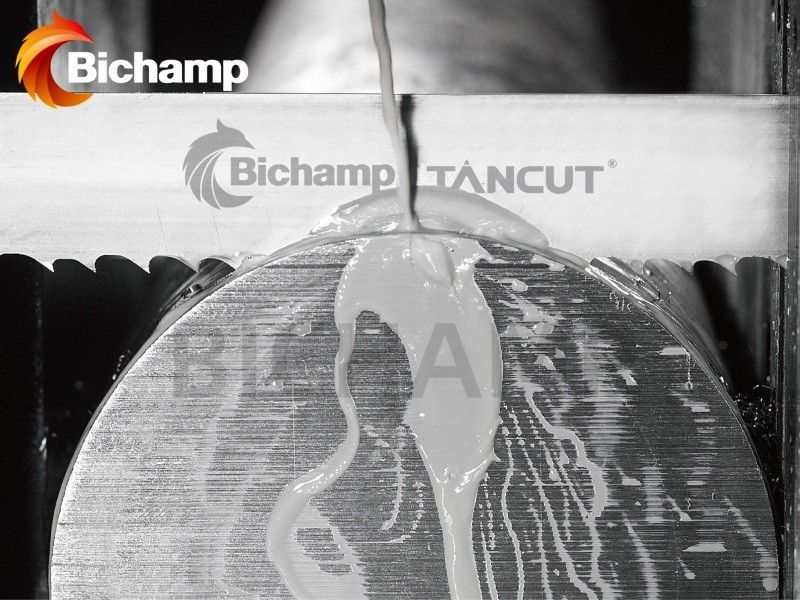

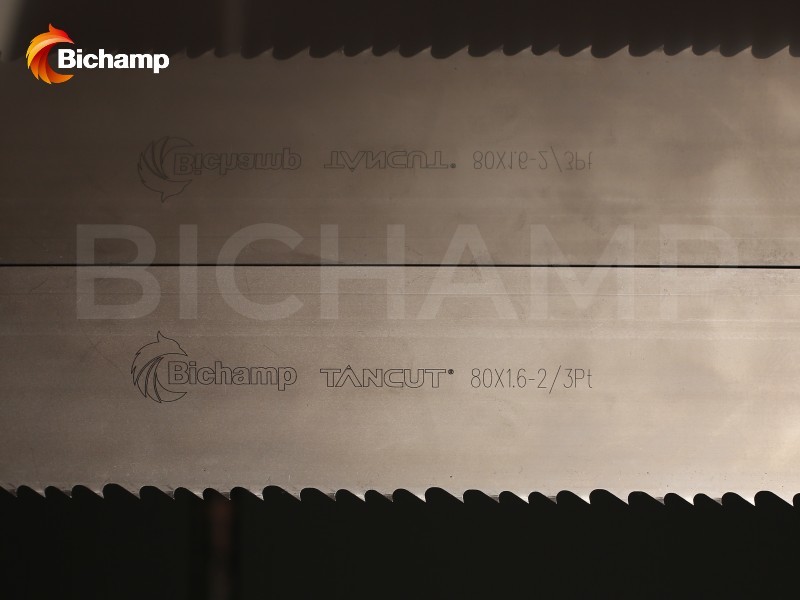

TANCUT® M51 HSS Bi-Metal High Performance 67x1.60mm Bandsaw Blade for Die Steels Cutting
Benifits
• Optimized for sawing difficult-to-cut materials
• High performance backing steel for longer fatigue life
• With M51 tooth tips, designed to cut medium to very large work pieces with high precision
Features
• Powder metallurgy (M51) high speed steel edge for hard alloys cutting
• Faster cutting on difficult to cut steels
• Excellent chip removal
• Fatigue-resistant backing
• Excellent wear resistant
Applications
• Alloy Steel • Bearing Steel
• Die Steel • Tool Steel
• Stainless Steel • Titanium Alloys
| Width x Thickness | 0.75/1.25 | 1/1.5 | 1.4/2 | 2/3 | 3/4 | |
| MM | Inches | α=11° | α=7° | α=10° | α=10° | α=10° |
| 27x0.90 | 1x0.035 | VP-G | VP-G | |||
| 34x1.10 | 1-1/4x0.042 | VP-G | VP-G | |||
| 41x1.30 | 1-1/2x0.050 | VP-G | VP-G | VP-G | ||
| 54x1.60 | 2x0.063 | VP-G | VP-G | VP-G | VP-G | VP-G♦ |
| 67x1.60 | 2-5/8x0.063 | VP-G | VP-G | VP-G | VP-G♦ | VP-G♦ |
| 80x1.60 | 3x0.063 | VP-G | VP-G♦ | |||
♦——MOQ REQUIRED
