Bichamp Cutting Technology
| Place of Origin: | China |
|---|---|
| Brand Name: | Bichamp |
| Certification: | IAF, SGS, UKAS |
| Model Number: | AA® |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wrapped film packaging+Non fumigation pallets 1100*1100， 1100*550， 800*800 |
| Delivery Time: | Root 1-2 weeks, Coil 3-4 weeks |
| Payment Terms: | L/C, T/T |
| Supply Ability: | Over 20 million Meter Per year |
| Series: | AA® | Blade Material: | Power Metallurgy(B2000) High Speed Steel |
|---|---|---|---|
| Application: | Solid Materials And Profiles | Advantage: | Advanced General Purpose Cutting |
| OEM/ODM: | YES | Process Type: | Laser Welded |
| Band Width: | 54mm | Blade Thickness: | 1.60mm |
| Highlight: | HSS 2 Inch Band Saw Blades,2 Inch Band Saw Blades OEM |
||

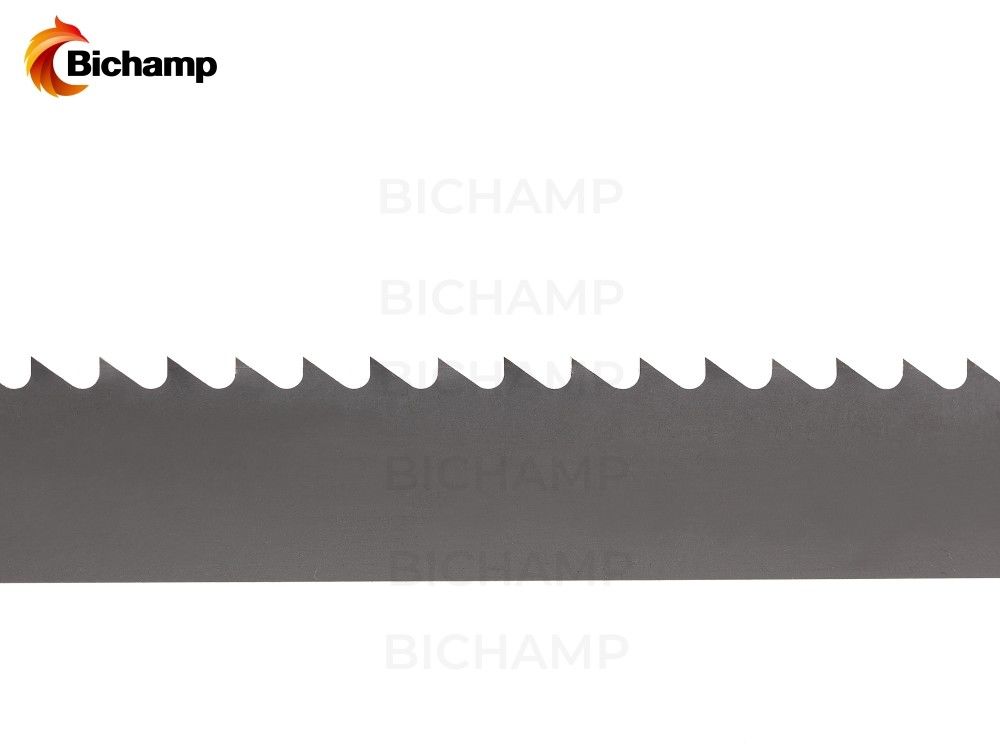

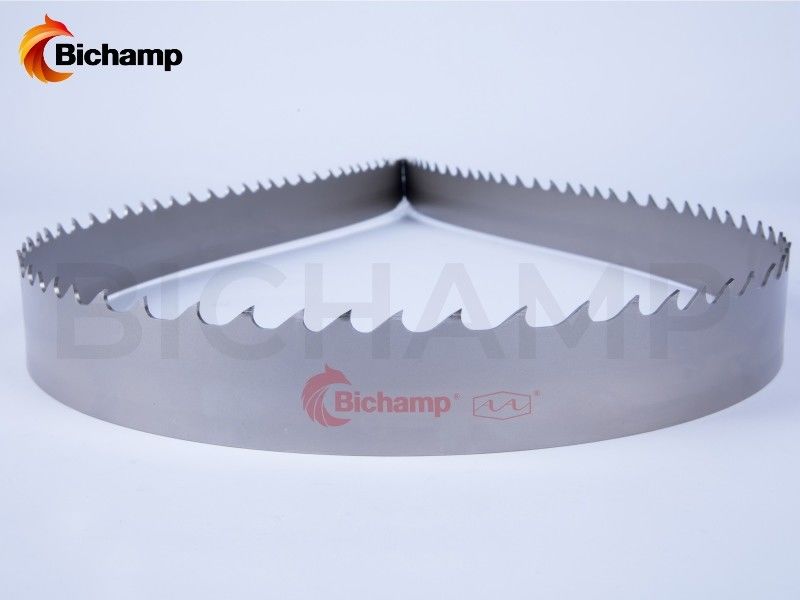

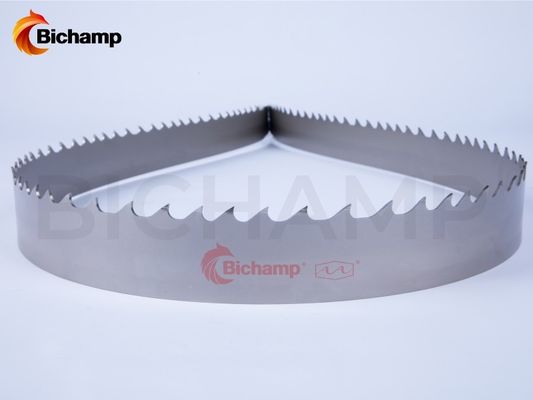

AA® 54x1.60mm HSS Advanced Machine Tool 14mm Bandsaw Blade for Metal Cutting
AA® Powder HSS Advanced General Purpose Blade
Features
• Bandsaw blade with the most flexible solution for production cutting
• Power metallurgy(B2000) high speed steel edge.
• Deep gullet tooth design for better chip removal.
• Good beam strength.
• Patented heat treatment process and optimized surface treatment.
• Maximum cutting performance from the specially designed tooth design.
• Less vibrations and wear resistance.
Applications
• Aluminum/Copper • Carbon Steel
• Structural Steel • Alloy Steel
• Bearing Steel • Die Steel
Avaliable Size
| Tooth Form | Positive rake angle | Standard | ||||||
| Width x Thickness | 0.75/1.25 | 1/1.5 | 1.4/2 | 2/3 | 3/4 | 4/6 | 5/8 | |
| MM | Inches | α=11° | α=7° | α=10° | α=10° | α=10° | α=7° | α=0° |
| 27x0.90 | 1x0.035 | VP-G | VP-G | VP-G | VS-G | |||
| 34x1.10 | 1-1/4x0.042 | VP-G | VP-G | VP-G | VS-G | |||
| 41x1.30 | 1-1/2x0.050 | VP-G♦ | VP-G | VP-G | VP-G | VP-G | ||
| 54x1.60 | 2x0.063 | VP-G | VP-G | VP-G | VP-G | VP-G | VP-G♦ | |
| 67x1.60 | 2-5/8x0.063 | VP-G | VP-G | VP-G | VP-G♦ | VP-G | ||
♦——MOQ REQUIRED
